PRECISION Induction Heater model PIH 2003 has heavy capacity to heat the components. It has controls similar to PIH-2002, which are intelligent microcontroller based electronic control.
It weights about 86 kg. It can heat a bearing of 40 kg to 50 kg to temperature of 100oC in 6-7 minutes.
- Manufacturing, exporting and supplying of a wide assortment of induction heaters, electrical induction heaters, industrial induction heaters and hydraulic equipment.
- CALL US
- +(91)-9325029465 / 9833228721
- TIMING
- Mon - Sat: 10am - 5pm

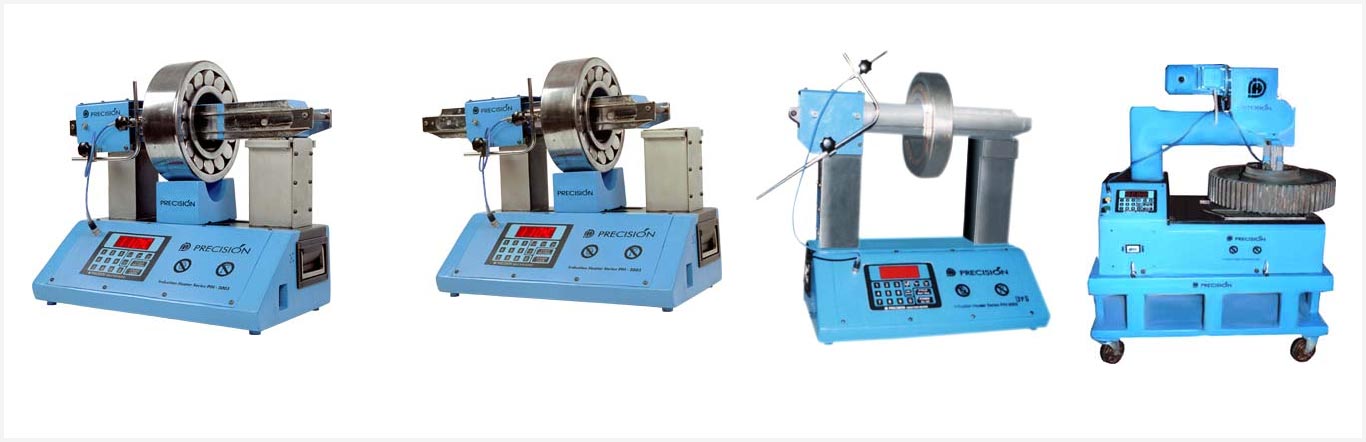

Tyre Induction Heater PIH: 2003 (11 / 16 KVA)
Tyre Induction Heater PIH 2003 (11 / 16 KVA)
Model PIH 2003 is provided with manual or automated Roll-sliding Arrangement for the standard yoke 80x80x490 mm. The Roll-Sliding Arrangement is so designed that the yoke gets lifted mechanically or automatically rolls off from the vertical supports without rubbing or damaging and scraping mating surfaces. This arrangement provides additional safety, ease of operation and helps to improve productivity.
| Sr. | PRODUCT DATA | PIH - 2003 |
|---|---|---|
| 1) | Diameter (mm) Bearing | 60 to 500 |
| 2) | Bearing Weight | 70 Kg |
| 3) | Power | 11 / 16 KVA |
| 4) | Voltage | 440V |
| 5) | Power Control | 25%, 50%, 75%, & 100% |
| 6) | Temperature Control (Range) | 0 - 250oC |
| Maximum Temperature | 400oC | |
| Accuracy Temperature | ± 3oC | |
| 7) | Time - Control | 0 - 99 Minutes |
| 8) | Residual Magnetism | <2A / cm |
| 9) | Overall dimensions (wxdxh) (mm) | 590 x 330 x 390+ |
| 10) | Space between supports (wxh) (mm) | 320 x 205 |
| 11) | Weight (Main Unit) | 83 Kg. |
| 12) | Weight with Standard Yokes | 115 Kg. |
| 13) | Horizontal Yoke Sizes (mm) | 80 x 80x 500 |
| --------- | ||
| --------- | ||
| 14) | Can Heat Sealed & Pre-greased Bearings |  |
| 15) | Thermal Over Protection | |
| Sr. | Optional Accessories | |
|---|---|---|
| 1) | Horizontal Yoke Sizes (mm) | 30 x 30 x 500 |
| 40 x 40 x 500 | ||
| 50 x 50 x 500 | ||
| 65 x 65 x 500 | ||
| 2) | Digital Thermometer (0-500oC) | |
| 3) | Roll - Sliding Model | |
| 4) | Swing Arm Model | |
| 5) | Riser Block (Pair) (mm) | |
| 6) | Magnetic Temperature Probe | |
| 8) | Equipment Trolley | |
