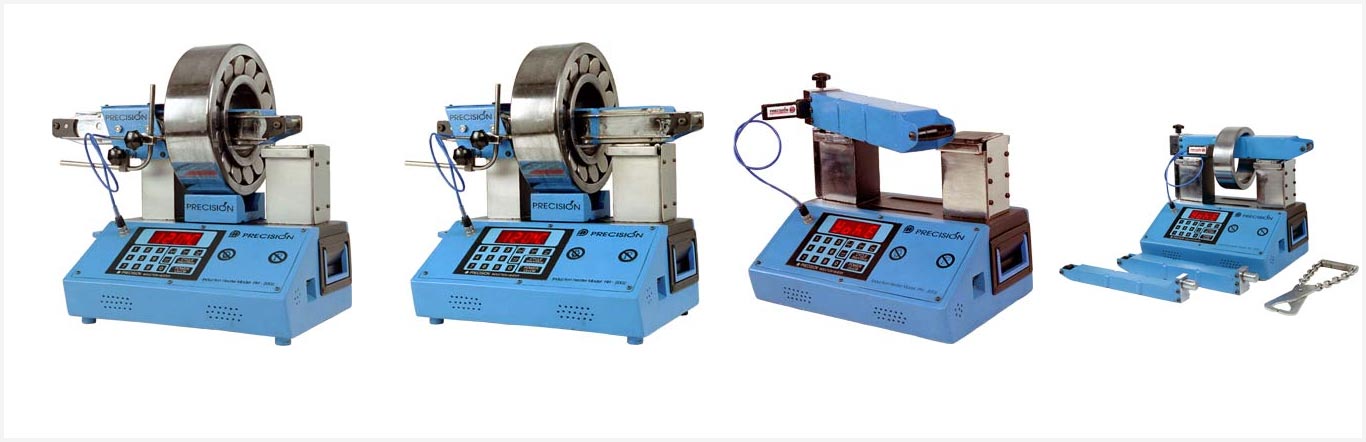

PRECISION Induction Heater model PIH 2002 has medium capacity to heat the components.
It is also intelligent micro controller based electronic controls. It weights about 44 kg. It can be easily carried to the site of operation, using specially designed handle provided on both sides. It can heat a bearing of 28 kg to 30 kg to temperature of 100oC in 5 minutes. PIH-2002 consists of the control mounted on main body of Induction Heater and a remote control is provided for higher efficiency.
- Manufacturing, exporting and supplying of a wide assortment of induction heaters, electrical induction heaters, industrial induction heaters and hydraulic equipment.
- CALL US
- +(91)-9325029465 / 9833228721
- TIMING
- Mon - Sat: 10am - 5pm
Induction Heater PIH: 2002 (6.0 / 8.0 KVA)
Induction Heater PIH 2002 (6.0 / 8.0 KVA)
| Sr. | PRODUCT DATA | PIH - 2002 |
|---|---|---|
| 1) | Diameter (mm) Bearing | 20 to 400 |
| 2) | Bearing Weight | 50 Kg |
| 3) | Power | 6.0 / 8.0 KVA |
| 4) | Voltage | 230V / 440V |
| 5) | Power Control | 25%, 50%, 75%, & 100% |
| 6) | Temperature Control (Range) | 0 - 250oC |
| Maximum Temperature | 400oC | |
| Accuracy Temperature | ± 3oC | |
| 7) | Time - Control | 0 - 99 Minutes |
| 8) | Residual Magnetism | < 2A / cm |
| 9) | Overall dimensions (wxdxh) (mm) | 430 x 300 x 310+ |
| 10) | Space between supports (wxh) (mm) | 190 x 170 |
| 11) | Weight (Main Unit) | 47 Kg |
| 12) | Weight with Standard Yokes | 63 Kg |
| 13) | Horizontal Yoke Sizes (mm) | 65 x 65x 350 |
| --------- | ||
| --------- | ||
| 14) | Can Heat Sealed & Pre-greased Bearings |  |
| 15) | Thermal Over Protection | |
| Sr. | Optional Accessories | |
|---|---|---|
| 1) | Horizontal Yoke Sizes (mm) | 20 x 20 x 350 |
| 30 x 30 x 350 | ||
| 40 x 40 x 350 | ||
| 50 x 50 x 350 | ||
| 2) | Digital Thermometer (0-500oC) | |
| 3) | Roll - Sliding Model | |
| 4) | Swing Arm Model | |
| 5) | Riser Block (Pair) (mm) | |
| 6) | Magnetic Temperature Probe | |
| 8) | Equipment Trolley | |
